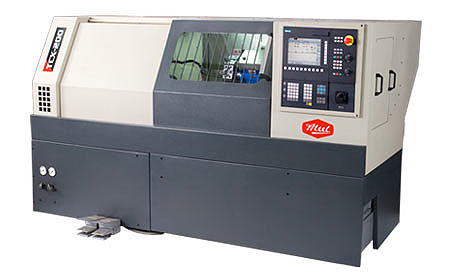

CNC Turning Center S P E C I F I C A T I O N S Capacity Swing over bed Ø450mm Distance between centre 400mm Standard turning dia. Ø200mm Maximum turning dia. Ø300mm Main Spindle Spindle Nose A2-6 Bore through spindle 55mm Bar capacity 42mm Chuck size 200mm Spindle Drive Spindle motor rated power (continuous rating/30min. rating) 7/9 Kw Speed range  50-3500rpm Full power range 950-3500rpm Axes Slides X axis stroke 160mm Z axis stroke 400mm X & Z Axis feed rate 15m/min X & Z Axis max. feed torque 6nm X & Z Axis ball screw dia. & pitch Ø32mm X 10P Tail Stock Quill diameter 82mm Quill stroke 100mm Taper in quill  MT-4 Thrust (adjustable) Max. 500Kgf. Turret No. of station 8 Maximum boring bar dia. 40mm Tool cross section 25mm X 25mm   Weight (Approx.) 3750Kgs. Machine Dimension (L x W x H) 2685x1480x1540   Control system Siemens 802D / Fanuc Oi Mate TC     Standard  Machine Features ● AC Spindle Drive ● AC Servo Drive ● Hardened and Ground Guideway Strips ● Turcite Coated Slideway Surfaces ● Hydraulic Chuck with Actuating Cylinder ● Tailstock with Hydraulic Quill movement ● Bi-directional 8-Station Tool Turret ● Automatic Centralized Lubricaion System ● Panel Air Conditioner ● Coolant System  ● Machine Lighting System ● Turning Tool Holders   ● Boring Bar Holders ● Set of Sleeves Optional Enhance ● Chip Conveyor ● Bar Feeder & Puller ● Servo Turret ● Live Tooling ● Patrol Light ● Voltage Stabilizer ● Steady Rest ● Auto Door ● Proggramable Tail Stock ● Tooled-up solution as per customer needs Machine Varities ● TCX - 250 ● TCX - 300     Note : As improvements are constantly made in our machine, the above specifications              are subject to change without notice and are not binding on us. Back
